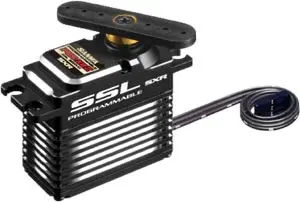

Servo PGS-Xrii 1/8 on Road 2019 - 0.09/17.3kg 7.4v Brushless

Description

- FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE

- SSL-COMPATIBLE PROGRAMMABLE SERVO

# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)

Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

- PGS SETTING GEAR-COMPATIBLE

- SUPER RESPONSE (SSR) MODE-COMPATIBLE

- HIGH RESPONSE (SHR) MODE-COMPATIBLE

- Li-Po 2 CELL-COMPATIBLE

- HIGH TORQUE TYPE

- BRUSH LESS MOTOR

- FULL ALUMINUM CASE

- FULL METAL GEAR (Strengthening Gears)

- AL HEAT SINK<

- Black Harness

Speed

0.09 sec/60 (7.4V)

0.11 sec/60 (6.0V)

Torque

17.3 kg●cm (7.4V)

14.0 kg●cm (6.0V)

Dimensions

40.5x20.5x38.7 mm

Weight

72 g

●Programmable Servo to be compatible with SSL & Telemetry at Launch

●Setting Adjustment by wireless from Radio

●Setting Adjustment to connect Servo with Setting Gear

●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,

Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

★Setting Items

●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)

●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)

●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)

◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)

◎MAX-PW (MAX Duty Adjustment)

※ Setting Gear is necessary for ◎setting.

●PGS-Servo Explanation
